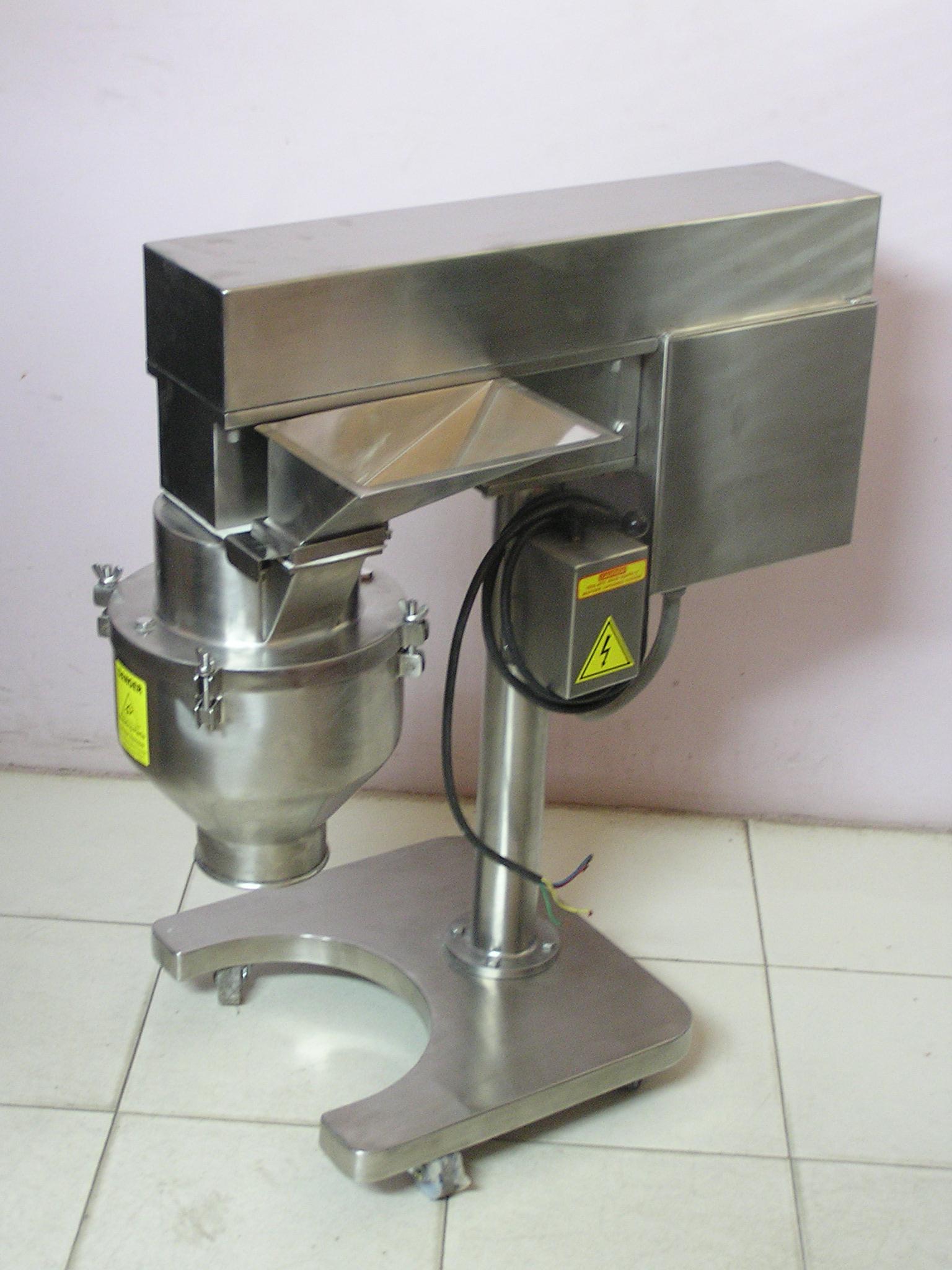

"LAB SCALE" MULTIMILL MACHINE

...

SALIENT FEATURES

  • Direction for beaters can be changed by reversible switch.
  • All Contact parts can be easily and quickly dismantled and cleaned.
  • Cylindrical screen for higher output.
  • Castor Wheels provided for mobility.
  • Beaters & Scrapper blades of S.S.316 Quality.
  • Flame Proof electrical components can be provided at extra Cost.

Technical Specification

Model SMMM
Height 930 mm
Width 685 mm
Length 435 mm
Charging Height 790 mm
Discharge Height 350 mm
Screen Size Dia 168 X 90 mm
Contact Part S.S. 316
Non-Contact Part S.S. 304
Electricals 0.5 HP, 3 Ø , 1440 RPM / A.C.
Net Weight 70 Kg. Approx.
Rotor Speed 750/1500/2300/3000 RPM.
Beaters 12 No. with Knife & Impact Edge / 2 No. Scraper Blades
Starter Reverse & Forward Switch
