Lab Press BI Layer

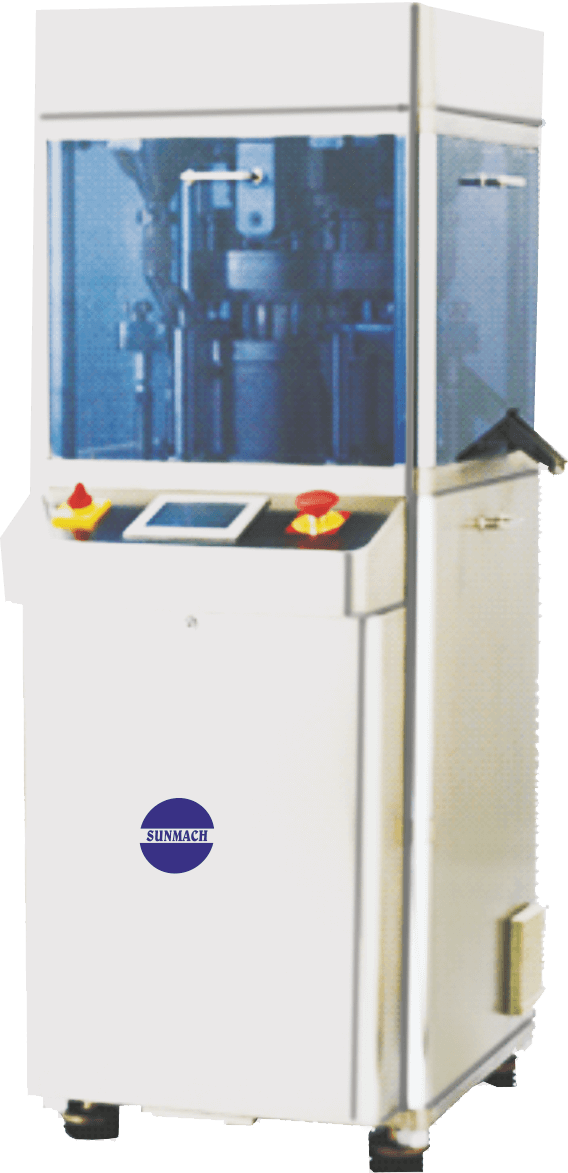

SUNMACH MINI PRESS is a R&D tablet press designed to simulate two-layer tablet production on a pilot/small scale. It is available in 9D, 11B & 10DB (5D & 5B) configurations.
  • cGMP model with contact parts SS 316
  • Central pillar drive through an oil-immersed reduction gearbox
  • Gravity feeding system & pre-compression System
  • 3 Piece turret with SS 316 die table (upper & lower piece with ELNP coating)
  • PLC with HMI controls
  • Mono layer tablet attachment
  • First layer sampling device


  • Main, pre compression & ejection force monitoring System
  • Compaction Force Control system (CFC System)
  • Force feeding system with ACVFD
  • Turret with HCP Die table
  • Various depth of fill lower cam tracks
  • Turret with lower punch key way

The ideal output of the machine is maximum upto 23000 tablets/hr.
