Tablet Tester

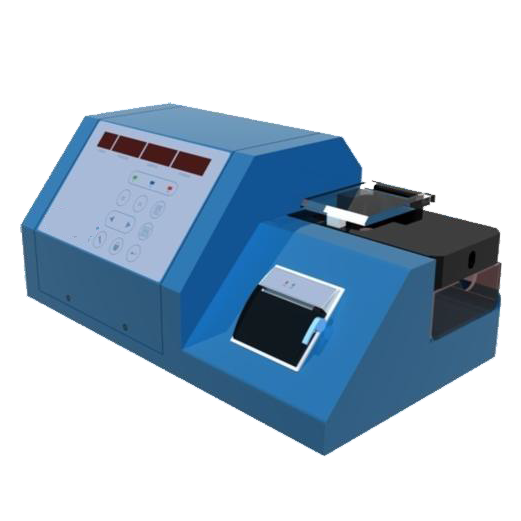

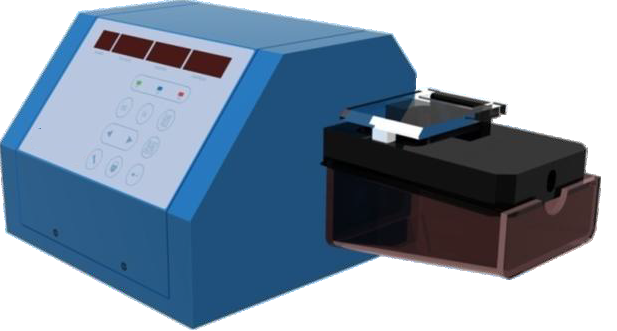

SM Pharmatech SMT 3 measuresThree Parameters of a Tablet :

Thickness, Diameter (Accuracy 0.05mm) and Hardness (Accuracy 1N)

SM Digital Tablet Testers are compliant with EP and USP Pharmacopoeia. The SMT Series combines the Accuracy and Precision of a Microprocessor Controlled Instrument.

Operation is User Friendly with Menu Driven Function with Illuminated LED Display. The Ergonomic Design makes Tablet Insertion Quick and Convenient and the Jaws Automatically adjust for most of Tablet Shapes. Its rugged design is perfect for online testing in production areas.

... ...

Salient Feature:

  • SMD Technology and Compact in size
  • Measures the Thickness, Diameter and Hardness of the Tablet
  • Unit of Hardness in Newton (N), Kilopond (Kp), Strong Cobb (Sc)
  • Precise positioning of sample accommodates any shape tablet from 1.5 to 35mm Diameter (length)
  • Upto 99 Test Statistics
  • RS 232 Interface for connecting with PC
  • Parallel Printer Interface for Dot Matrix Printer
  • Password Protection and Factory Setting Reset
  • Self Diagnosis and Fault Localization
  • 3 Point Calibration
  • Illuminated LED Display
  • Calibration and Validation : Simple & Easy Calibration and/or Verification (Validation) with Certified 10mm Gauge
  • Block for Distance Parameter and 10Kg Weight for Hardness Parameter. Distance Validation with 10mm cert.block (thickness and diameter)

Technical Specification

Model Parameter Range Unit Of Measurement Accuracy
SMT - 3 / SMTP - 3 Thickness 1.5 - 35 mm Millimeters / Inches ±0.05 mm
Diameter 1.5 - 35 mm Millimeters / Inches ±0.05 mm
Hardness 5 - 500 N N, Kp, Sc ±1 N
Standard Accessories : Standard Jaw Plate, Safety Shield, Brush, Embedded Software, Allen Key (4mm), Screw Driver, Mains Cord, Tablet Collection Tray, Operating Manual Optional Accessories : Certified and Calibrated Standard Weights, Certified Gauge Blocks, IQ/OQ/PQ Documents, Printer, 40 column Built in Printer and Computer Serial Cable (RS 232 Cable)

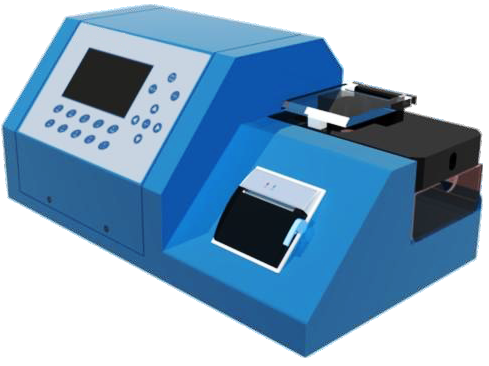

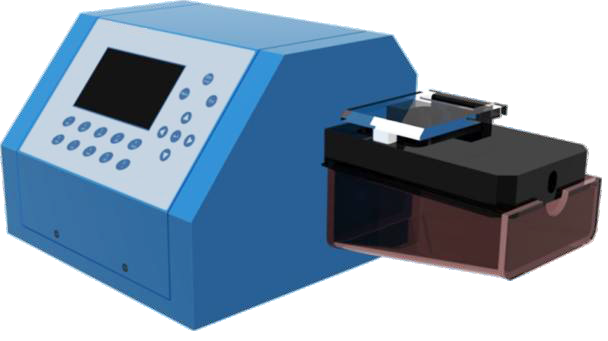

DIGITAL TABLET TESTER 4 PARAMETERS

... ...

Salient Feature:

  • SMD Technology and Compact in size
  • Measures the Thickness, Diameter, Hardness and Weight of the Tablet
  • Unit of Hardness in Newton (N), Kilopond (Kp), Strong Cobb (Sc)
  • Precise positioning of sample accommodates any shape tablet from 0.75 to 35mm Diameter (length)
  • Support for Saving, Retrieving and Printing of up to 10 sets of Test Results, up to 100 Tests in Each
  • USB Serial COM Port for PC Interface. USB Host interface for Test Result Data saving in USB flash drives
  • RS232 Interface with ExternalAnalytical Balance Connectivity.
  • Password Protection and Factory Setting Reset
  • 3 Point Calibration
  • Large Monochrome Graphical LCD Display 240 x 128
  • Self Diagnosis and Fault Localization
  • Calibration and Validation: Simple & Easy Calibration and/or Verification (Validation) with Certified 10mm Gauge Block for Distance Parameter and 10Kg Weight for Hardness Parameter. Distance Validation with 10mm cert. block (thickness and diameter)
Model Parameter Range Unit Of Measurement Accuracy
SMT - 4 / SMTP - 4 Thickness 0.5 - 35 mm Millimeters / Inches ±0.05 mm
Diameter 0.5 - 35 mm Millimeters / Inches ±0.05 mm
Hardness 5 - 500 N / 800 N N, Kp, Sc ± 1 N
Weight 60 - 300 gms 0.01 mg
Standard Accessories : Standard Jaw Plate, Safety Shield, Brush, Embedded Software, Allen Key (4mm), Screw Driver, Mains Cord, Tablet Collection Tray, Operating Manual Optional Accessories : Certified and Calibrated Standard Weights, Certified Gauge Blocks, IQ/OQ/PQ Documents, Printer, 40 column Built in Printer and Computer Serial Cable (RS 232 Cable), Weighing Balance.
