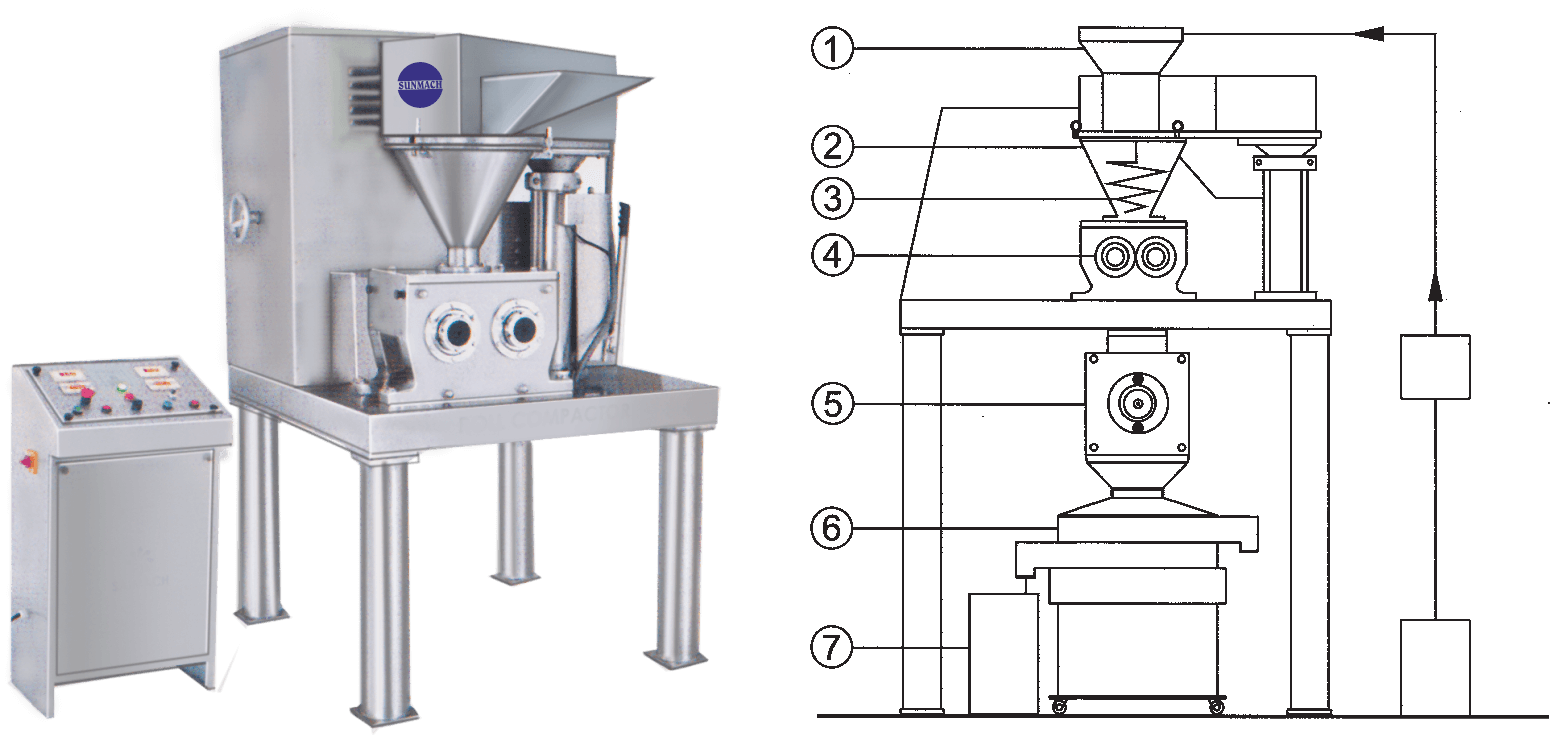

“SUNRC” ROLL COMPECTOR GMP MODEL
- The Machine Construction and components in accordance with cGMP Standard.
- The Compacting Roll is desired to provide a Uniform force distribution to produce granules of Equal quality.
- The compacting roll is cooled by a water circulation cooling system for heat sensitive products.
- To Achieve maximum bulk density and output various type of rolls offered is 1.Plain 2. Corrugated 3. Briquetted 4. Knurled.
- The Roll surface is designed to prevent powder slippage.
- The side seal is forced against the roll side so that the percentage of uncompacted powder that leaks by is kept extremely low.
- A scraper is mounted at the bottom and top of the roll to scrape off powder sticking on the roll.
- The machine is enclosed in a stainless steel enclosure providing for clean operation with no dust discharged into the room.
- The hopper and screw feeder are designed to lift up for easy dismantling and cleaning.
- To facilitate the clean up job, the control panel is separate from the basic machine, thus the product contact area can be safely washed down with water.
- To prevent a possible accident the compacting roll is designed to rotate backward when cleaning.
- For safety purposes, an emergency stop button is provided both on the machine and the control panel.
- Feed screw is sleeplessly driven through variable frequency controlled speed drive.
- The control panel provided with on – off switch, indicator, digital RPM indicator, emergency stop, etc.
- Due to machine design, a minimum amount of lubricant is required in material.
|Models||SUNRC 200/50||SUNRC 200/75||SUNRC 200/100||SUNRC 200/150|
|Output*||20 to 60 kg/hr||75 to 100 kg/hr||100 to 250 kg/hr||100 to 350 kg/hr|
|Roll Speed||6 to 25 RPM||6 to 25 RPM||5 to 22 RPM||5 to 22 RPM|
|Roll Size||Ø 200 x 50 w||Ø 200 x 75 w||Ø 200 x 100 w||Ø 200 x 150 w|
|Feed Screw Speed||10 to 60 RPM||10 to 60 RPM||12 to 50 RPM||12 to 50 RPM|
|Roll Drive Motor||5 HP, 3 Ø, AC, 960 RPM||5 HP, 3 Ø, AC, 960 RPM||7.5 HP, 3 Ø, AC, 960 RPM||10 HP, 3 Ø, AC, 960 RPM|
|Feed Screw Drive Motor||1.5 HP, 3 Ø, AC, 1440 RPM||1.5 HP, 3 Ø, AC, 1440 RPM||3 HP, 3 Ø, AC, 1440 RPM||3 HP, 3 Ø, AC, 1440 RPM|
|Overall Dimension||115 x 132 x 203 H||115 x 132 x 203 H||245 x 125 x 130 H||245 x 125 x 130 H|
|Net Weight (Approx.)||1550 Kg.||1590 Kg.||2790 Kg.||2820 Kg.|
|Roll surface**||Corrugated Knurled Smooth Briquetted||Corrugated Knurled Smooth Briquetted||Corrugated Knurled Smooth Briquetted||Corrugated Knurled Smooth Briquetted|
