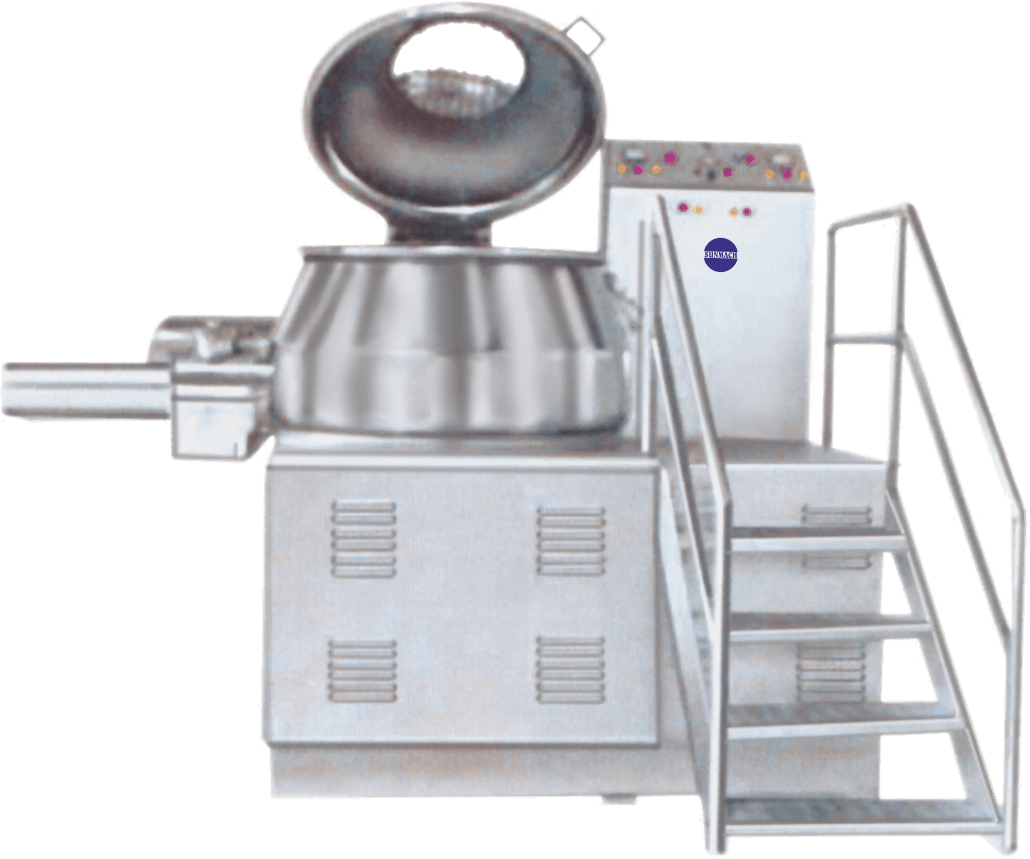

RAPID MIXER GRANULATOR

...

WORKING PRINCIPLE

The RMG working principle is based on 2 decisive factors essential for the mixing systems.

1. Spinning close to the bottom of the mixing bowl.

2. The impeller sets the entire mixture in a whirling-rising tumbling motion ensuring a quick and even distribution of all dry components which leads to an even distribution of all dry components which leads to an even wetting of every granule. The large lumps occurred during wet mixing are broken up, by the strategically located chopping tool rotating at 1440/2880 RPM. The mix can be discharged with the impeller running through t he outlet located on the side of the mixing bowl flush to the bottom. Easy accessibility for cleaning is guaranteed by the low profile. The mixing tool is easily removed from the drive shaft providing an unobstructed mixing area which may be cleaned very easily.

MIXING BOWL

1. Dome shaped processing bowl which directs loose particles into whirling motion with the help of impeller.

2. Impeller consists of 2 full and 2 half solid mixing blades.

3. Inclination of the mixing blades accelerates rising and tumbling motion of the product in the bowl.

4. Specially designed chopper blades driven at high speed gives fast and even granulation, throughout the whole mass in the product bowl.

5. For easy accessibility in cleaning the side discharge assembly is provided with hinges.

SPECIAL FEATURES

1. Unit is designed to meet requirements of GMP.

2. Contact Parts can be SS 304 / 316 quality.

3. Specially designed control panel with display system and microprocessor.

4. Bowl, lid mixing agitator, discharge housing and all other contact parts will be of stainless steel.

5. All M. S. parts of the machine are cladded / covered with stainless steel.

6. Components of the machine are having easy accessibility for cleaning.

7. All electrical & pneumatic parts are pre-wired to simplify installation.

8. Limit switch is provided on main lid and discharge valve for safe operation.

9. Discharge can be provided on either side to suit clients requirement.

Optional FEATURES

1. Machine can be supplied with FLP electrical.

2. PLC can be provided for control panels,which can be integrated with computer for controlling/recording various process parameters.

3. Dust free feeding system.

4. Binder solution adding in built.

Technical Specification

Model SUNRMG-10 SUNRMG 25 SUNRMG 50
Gross Volume in litres 10 25 50
Working Volume in litres 8 20 40
Main Motor in HP & 2/3 HP/3ph/ 3/5 HP/3ph/ 3/5 HP/3ph/
RPM Dual speed 750 / 1500 750 / 1500 750 / 1500
Mixing speed RPM 75 / 150 75 / 150 75 / 150
Chopper motor HP& 1/1.5 HP/3ph/ 1/2 HP/3ph/ 2/3 HP/3ph/
RPM Dual speed 1440 / 2880 1440 / 2880 1440 / 2880
Output speed RPM 1440 / 2880 1440 / 2880 1440 / 2880
Weight in Kgs. 200 900 1000
Overall dimensions
Length 1450 1440 1700
Width 600 1000 750
Height 950 1310 1400
H-1 1060 1345 1600
Model SUNRMG 100 SUNRMG 150 SUNRMG 250
Gross Volume in litres 100 150 250
Working Volume in litres 80 120 200
Main Motor in HP & 7.5/10 HP/3ph/ 10/15 HP/3ph/ 20/30 HP/3ph/
RPM Dual speed 750 / 1500 750 / 1500 750 / 1500
Mixing speed RPM 75 / 150 75 / 150 75 / 150
Chopper motor HP& 2/3 HP/3ph/ 3/5 HP/3ph/ 3/5 HP/3ph/
RPM Dual speed 1440 / 2880 1440 / 2880 1440 / 2880
Output speed RPM 1440 / 2880 1440 / 2880 1440 / 2880
Weight in Kgs. 1400 1500 1800
Overall dimensions
Length 2350 2400 2550
Width 1100 1430 2350
Height 1750 2185 2050
H-1 1900 2280 2585
Model SUNRMG 400 SUNRMG 600 SUNRMG 1000
Gross Volume in litres 400 600 1000
Working Volume in litres 320 480 800
Main Motor in HP & 30/40 HP/3ph/ 40/50 HP/3ph/ 63/85 HP/3ph/
RPM Dual speed 750 / 1500 750 / 1500 750 / 1500
Mixing speed RPM 75 / 150 75 / 150 75 / 150
Chopper motor HP& 5/7.5 HP/3ph/ 5/7.5 HP/3ph/ 10/15 HP/3ph/
RPM Dual speed 1440 / 2880 1440 / 2880 1440 / 2880
Output speed RPM 1440 / 2880 1440 / 2880 1440 / 2880
Weight in Kgs. 2000 2500 3500
Overall dimensions
Length 2880 3100 3300
Width 2450 2690 3150
Height 2275 2510 3035
H-1 2960 3250 3765
