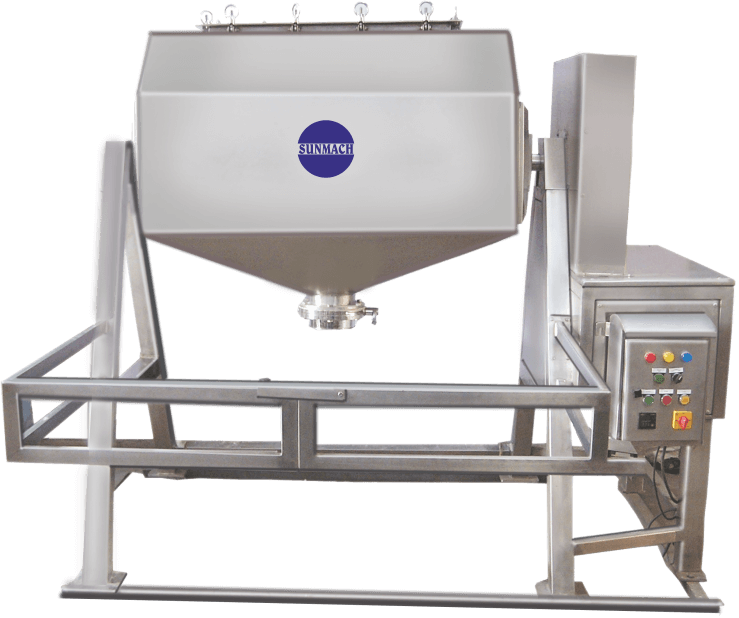

OCTAGONAL BLENDER

...

Technical Specification:

  • Suitable for dry mixing of products in granule form.
  • Easy for Loading and Unloading of Material.
  • Easy for Cleaning.
  • All contact parts are made out of S.S. 304/S.S.316 Quality material, as per customer requirement.
  • The octagonal shape & slow speed of rotating gives sufficient continuous movement to the granules, result in good quality.
  • Simple design requires minimum maintenance.
  • General structure & safety guards made out of mild steel & colored in standard Model and made out of S.S. 304 & Polished to the matt finish in GMP Model.
  • Maximum Care has been taken to ensure safe operation of the unit.
  • Manual rotating facility with hand wheel for inching.
  • Bigger size batch at lower power consumption.

Technical Specification

Cap in kgs 100 165 200
Cap in ltrs 300 500 600
Gross volume 375 600 725
Motor HP 1.5 2 2
Gear box 22 35 50
Discharge valve 150 200 200
Overall dimensions L X W X H 2165 X 1535 X 2585 2250 X 1800 X 2700 2300 X 1800 X 2800

Technical Specification

Cap in kgs 250 265 335
Cap in ltrs 750 800 1000
Gross volume 875 950 1150
Motor HP 3 3 5
Gear box 35 30 30
Discharge valve 200 200 250
Overall dimensions L X W X H 2300 X 1850 X 2800 2350 X 1900 X 2800 2700 X 2100 X 3050
