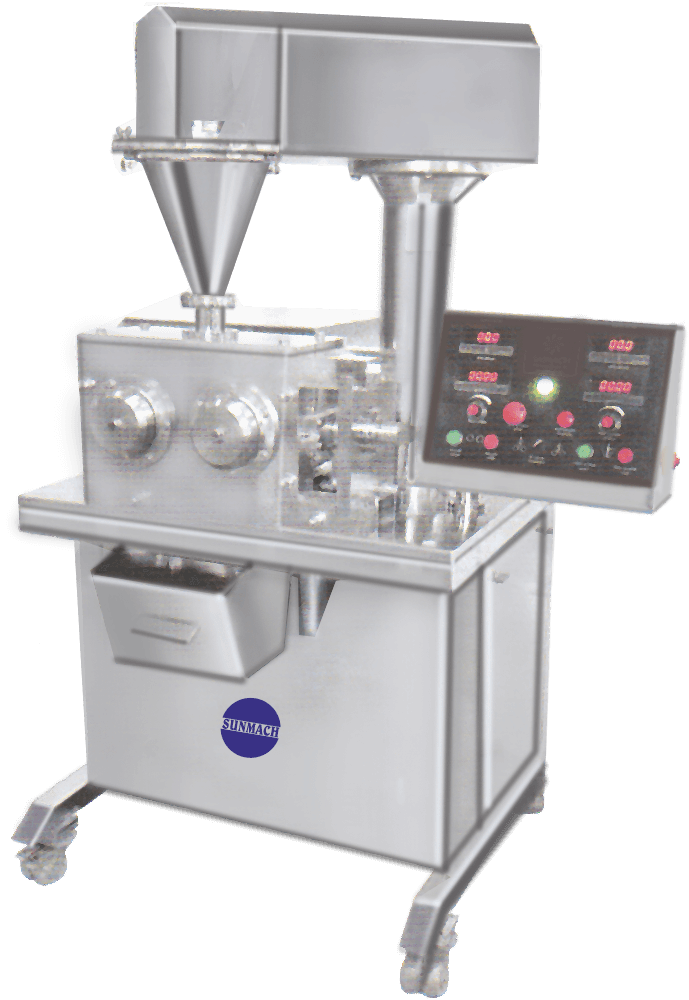

LAB SCALE ROLL COMPACTOR

...

Technical Specification:

  • The Compacting Roll is designed to provide a uniform force distribution to create uniform bulk density & to give fine granules of uniform quality after further process, thus granules of equal quality are produced.
  • A small sample size of few grams can also be tested of machine.
  • The results obtained can be further improved by production size machine.
  • Compact & portable design allows mobility for testing at a convenient place.

Technical Specification

Working Capacity 2 to 5 Kgs./Hr.
Roll Speed 2-29 RPM Variable
Screw Speed 5-86 RPM Variable
Total K.W. 1.68
Electrical Specifications 110 v., 60 Hz., 1 Phase or 220 V, 60 HZ., 3 Phase
Net Weight (Approx.) 375 Kgs.
Gross Weight (Approx.) 550 Kgs.
Machine Dimensions 712 X 727 X 1380 (H) mm
Case Dimension 1150 X 1150 X 1830 (H) mm

Note: Specifications of the machineries are subject to change without any prior notice.
