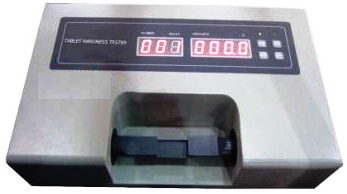

TABLET HARNESS TESTER

...

STANDARD FEATURES:

  • Hardness Measurement By Load Cell Up To 500 Newtons
  • Units Of Measurement In N, Kgf And Lbf
  • PC Connectivity / Printer Connectivity Through RS232 Port
  • Programmable Upper (T1) And Lower (T2) Tolerance Limits
  • Peak Hold And Auto Release Function
  • Green And Red Light Indication For Better Understanding
  • Memory Of Upto 10 Testing Data
  • Automated Semi-Calibration (Zero-Point Adjustment)
  • Display Of 10 Test Value And Calculate The Average Of The Memorized Value.
  • LCD Display With Back Light
  • Interchangeable Display Direction For Better View
  • Automatic Power Off Function
  • Acrylic Glass Safety Cover With Disposal Container
  • Tester Operates On Rechargeable Battery

Optional

  • 1 Kg Calibration Ring Weight
  • Hook for Weight
  • Calibration Certificate
  • IQ / OQ / PQ Documents
  • 2” Thermal Printer

TECHNICAL SPECIFICATIONS

Capacity 500N / 50kgf
Resolution 0.1N
Accuracy ± 0.5%
Tablet Range 2 ~ 28 mm
Display LCD with Backlight
Interface RS-232
Standard Accessories DC Power Adaptor,Cleaning Brush, User Manual, Storage & Carry Case
Gross Weight 5 kg

M Digital Automatic Tablet Hardness Tester (Model: SMA-THT)

Specification

  • Range of test Diameter - 3~40 mm
  • Power - 110V/60Hz/60W
  • Test time per tablet - First Tablet 25 Sec
  • next 10 s/p
  • Max number in each group - 100 pcs

Salient Features

  • Selectable Units: N, kgf, lbf
  • Inbuilt auto-test, auto-diagnose, auto-alarm
  • It can process and print hardness of each tablet, the maximum value, the minimal value, the average value and the number of tablets
  • Easy Calibration Procedures
  • Convenient use with Feather touché keys
  • Digital Bright LED Display

SM Digital Automatic Tablet Hardness Tester with Inbuilt Printer (Model: SMA-THTP)

Specification

  • Range of test Diameter - 3~40 mm
  • Power - 110V/60Hz/60W
  • Test time per tablet - First Tablet 25 Sec
  • next 10 s/p
  • Max number in each group - 100 pcs

Salient Features

  • Selectable Units: N, kgf, lbf
  • Inbuilt auto-test, auto-diagnose, auto-alarm
  • It can process and print hardness of each tablet, the maximum value, the minimal value, the average value and the number of tablets
  • Easy Calibration Procedures
  • Convenient use with Feather touché keys
  • Digital Bright LED Display
